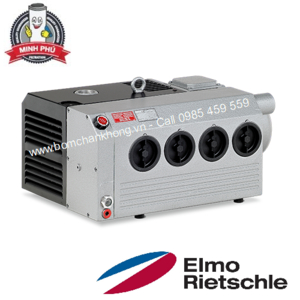

BƠM HÚT CHÂN KHÔNG RIETSCHLE VC 100

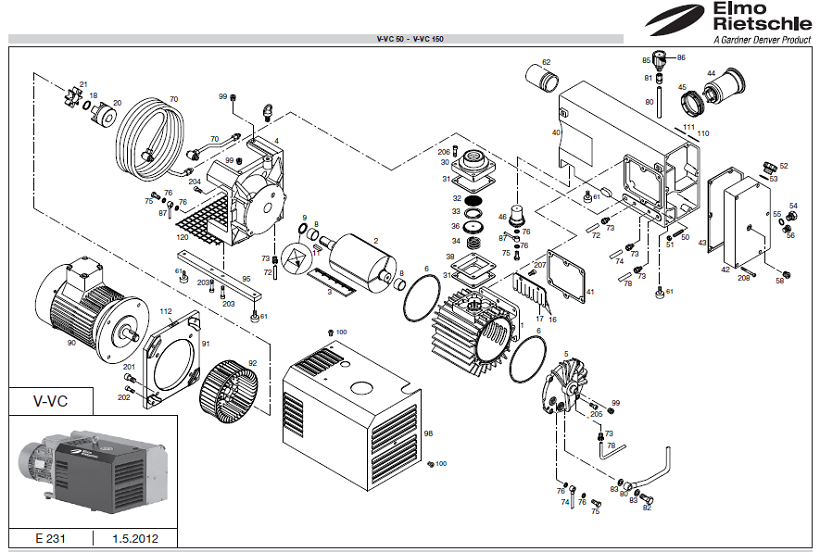

1 Housing 2 Rotor 3 Blade 4 Housing cover' A 5 Housing cover' B 6 O-Ring 8 INA-sleeve 9 Shaft seal 11 Key 16 Outlet valve cpl. 17 Valve plate 18 Lock ring 20 Coupling driven 21 Starter ring 30 Suction fl ange 31 Gasket 32 Mesh disc 33 Lock ring 34 Spring 36 Valve plate with O-Ring 38 Intermediate sheet 40 Oil separator housing
41 Gasket 42 Oil separator cover 43 Gasket 44 Oil separator element 45 Insert 46 Swimmer complete 50 Threaded pin 51 Hexhead nut 52 Oil fi ller plug 53 Sealing ring
54 Hex-oil sight glass 55 Sealing ring 56 Lock plug 58 Lock plug 61 Rubber foot 62 Hose connection 70 Lubrication pipe (VC 100) 70 Cooling snake (VC 150) 72 Lubrication pipe 73 Straight coupling 74 Lubrication pipe 75 Banjo bolt 76 Sealing ring 78 Lubrication pipe 80 Pipe line 81 Straight coupling82 Banjo bolt 83 Sealing ring 85 Gasballast valve 86 Filter disc 87 Lubrication pipe 90 Motor 91 Motor flange 92 Coupling driving with fan 95 Foot cpl. 98 Cover 99 Blank nut 100 Oval fl ange screw 110 Oil type plate 111 Data plate112 Direction arrow 120 Protection grill 201 Screws
